Proven Platform with Military Lineage

The Bell 407GXi: Proven. Trusted. Advanced.

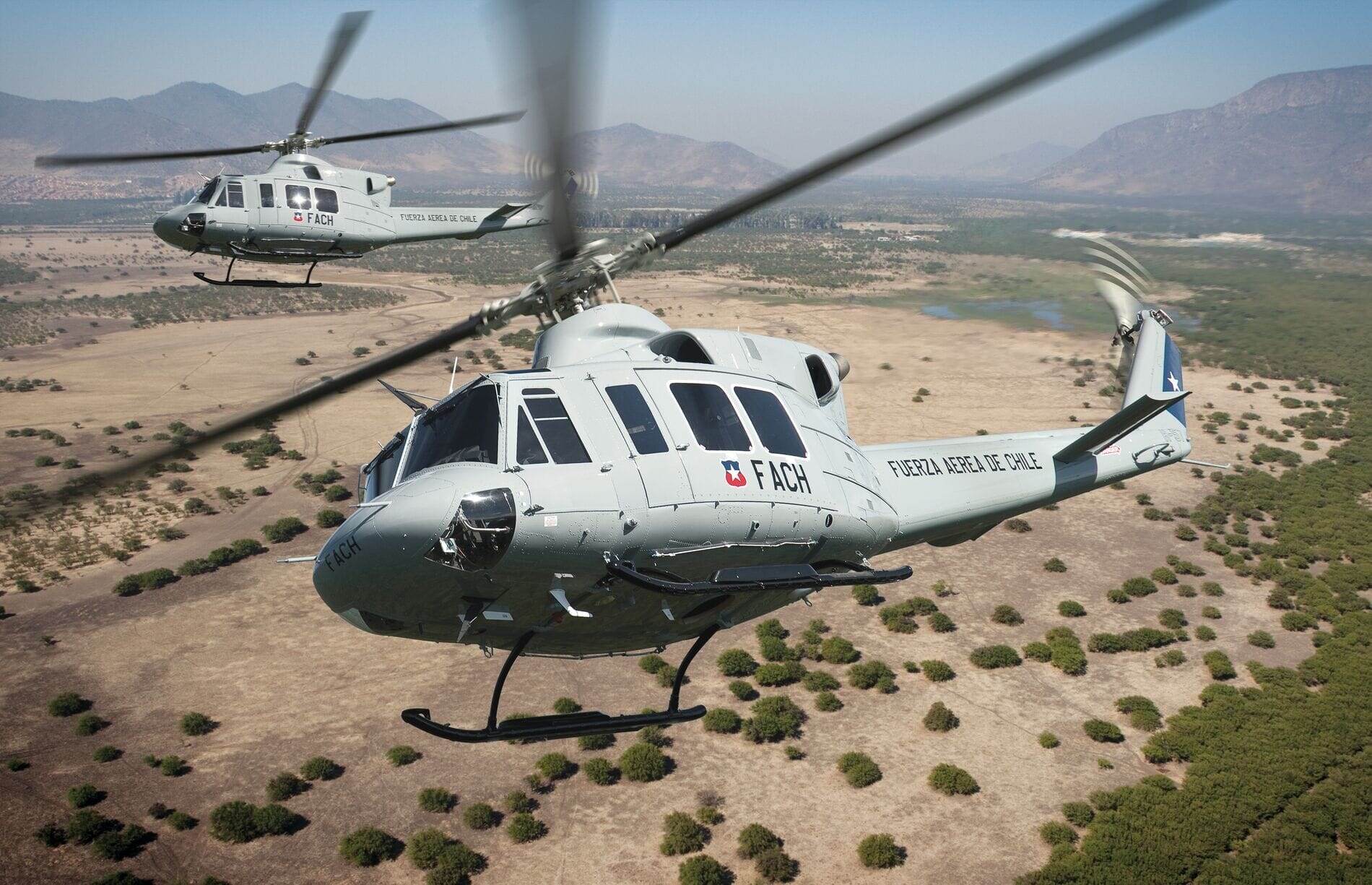

Two military helicopters fly over a dry, mountainous landscape, surrounded by sparse vegetation.

Proven Platform for Your Missions

Bell maintains a long-standing relationship with Chile in providing world-class helicopters and industry-leading support. It would be an honor to continue supporting The Chilean Air Force's missions.

It is certainly a multi-role helicopter but from a pilot's perspective it's a very capable ship. It's very fast it has plenty of power.
407GXi Pilot
Orange County Florida Sheriff's Office

Proven Platform for Your Missions

The latest Bell 407GXi platform showcases Bell's commitment to safety displayed in the overarching design philosophy that Bell incorporates into its products design and manufacturing process. Bell understands the need for large safety margins that begin with each aircraft component design. That is why bell aircraft have a reputation for high quality components with proven field reliability. And why the Bell single-engine helicopters have demonstrated some of the highest operational readiness rate of any other rotary wing airframe in the US military inventory.

Battlefield Tested

The 407 design benefits from Bell's long history of designing, building, and supporting military helicopters for different US military branches. For example, the Bell 407GXi Transmission system is derived from the popular Bell OH-58D Kiowa Warrior Helicopter flown by the United States Army. Its 4-bladed main rotor system, its intuitive cockpit, and responsive controls, provide an extremely high level of maneuverability and stability that make the 407 a superior platform from the piloting perspective.

Advanced Capabilities

The M250-C47E/4 engine with Dual Channel FADEC is equipped with redundant sensors and has a manual back up mode which provides the pilot direct control of engine power via the throttle on the collective. The Dual Channel FADEC reverts directly to manual mode for any FADEC system critical fault, including complete loss of electrical power.

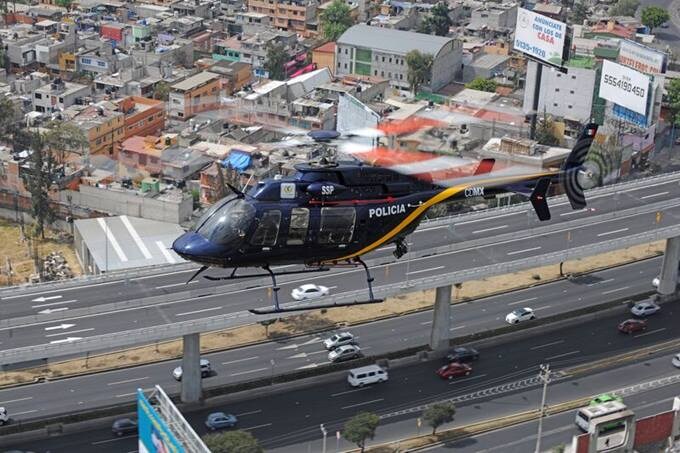

A police helicopter hovers above a busy highway in an urban area with buildings and billboards.

Ready to Continue Serving Your Missions

The Chilean Air Force has operated the Bell 206, 412 and UH-1H "Huey" for years. Bell's commitment to proven and durable products paired with industry-leading support remains unwavering - now and in the future.

Prioritizing Operational Readiness

Bell continues to focus on customer support. Our global customer solutions in Chile include two Customer Service Facilities: EagleCopters and ENAER. Both facilities are part of a global support network that focuses on priority 1: Operational Readiness.

Our Public Safety Product Solutions

Explore our public safety solutions and to hear more from our customers.

Öffentliche Sicherheit

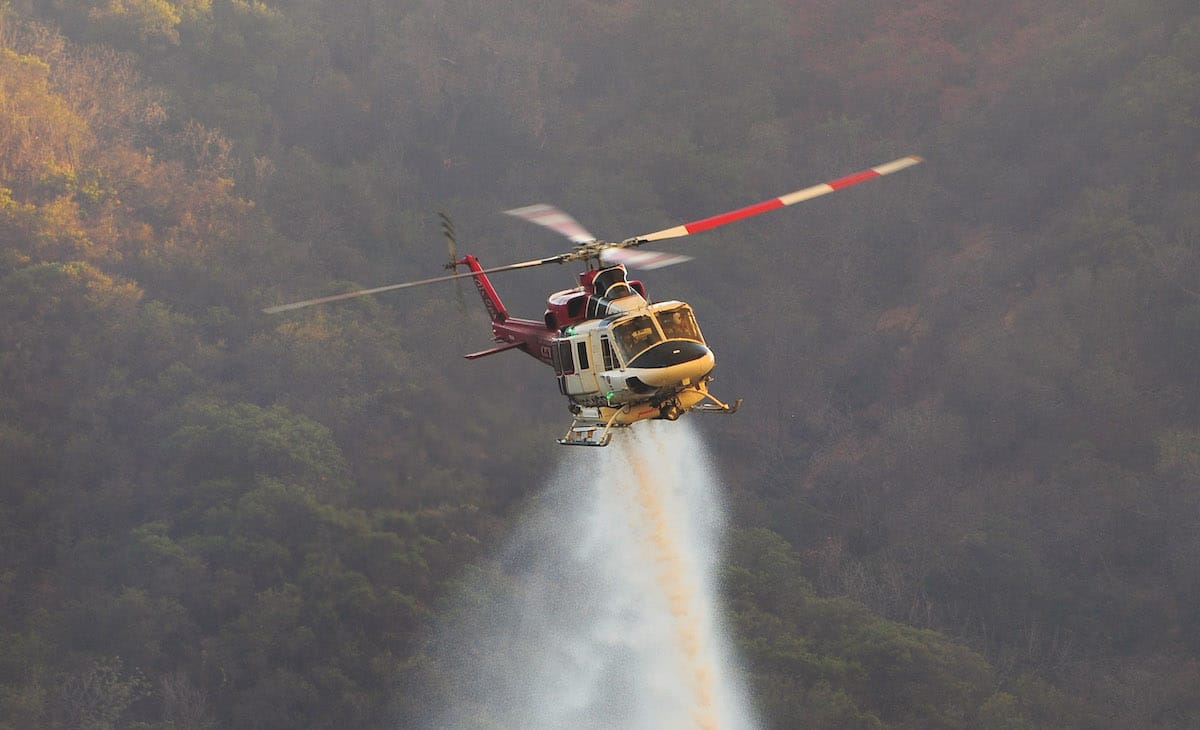

A helicopter spraying chemicals flies over a forested landscape. Smoke trails descend below.

Bell 407 Spezifikationen

Wählen Sie ein Dokument aus
Bell 407GXi Datenblatt
Bell 407GXi Produktspezifikationen
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Leistung
IGE-Schwebe-Obergrenze
13.550 Fuß
OGE-Schwebe-Obergrenze
11.940 Fuß
Max. Reisegeschwindigkeit
133 kts | 246 km/h
Reichweite mit VLRC
337 nm | 624 km
Max. Dauer
4,0 Std.

*Std Max GW, ISA, Std. Treibstoff – keine Reserve, auf Meereshöhe

Kapazitäten
Standardsitze
1+6
Standard-Brennstoff
127,8 US gal / 482,8 Liter
Zusatzkraftstoff
19 US gal / 71,9 Liter
Kabinenvolumen**
85 Quadratfuß
Volumen des hinteren Gepäckabteils
16 Quadratfuß, 0,5 Quadratmeter
Leergewicht​​​​​ – (Fluggerät Basis 407GXi)
2.700 Pfund / 1.224 kg
Max. Bruttogewicht (intern, Standard)
5.000 Pfund / 2.268 kg
Max. Bruttogewicht intern – Optional
5.250 Pfund / 2.381 kg
Max. Bruttogewicht (externe Belastung)
6.000 Pfund / 2.722 kg
Nutzlast – Intern – Standard – Basis 407GXi Spezifikation
2.300 Pfund / 1.043 kg
Nutzlast (intern, optional, Basis 407GXi)
2.550 Pfund / 1.156 kg
Lasthakentragkraft
3.100 Pfund / 1.406 kg
Triebwerk
Start
862 SHP / 643 kW
Max. Dauerleistung
761 SHP / 567 kW

Rolls-Royce Modell 250-C47-E/4-Turbowelle mit doppelter digitaler FADEC.

Avionik

Verbesserte Wahrnehmungsfähigkeit der Piloten mit dem integrierten Flugdeck GARMIN G1000H® NXi ​​​​​​​mit künstlicher Sicht und Abstandsmelder

  • Drahtlose Konnektivität mit Flight Stream 510 ermöglicht Piloten, Flugpläne schnell zu synchronisieren und Datenbanken von Smart-Geräten hochzuladen
  • Die bewegte Karte kann im HSI angezeigt werden, wodurch das MFD für die Flugplanung und andere Zwecke frei wird
  • Das multifunktionale MFD ermöglicht eine vom Piloten auswählbare Anzeige von 2 gleichzeitigen Seitenansichten auf dem MFD
  • Leistungsanzeige (Einzelindikator für die schnelle Überwachung durch den Piloten)
  • Anzeige des Kraftstoffflusses und Reichweitenanzeige
  • Heckrotor-Kamera (Anzeige im MFD)
  • Zusätzliche Funktionen und Optionen umfassen: WireAware, ADS-B aus und ein, Radar-Höhenmesser, TAS/TCAS I-Verkehr und XM-Wetter
